Pipe Elbow
Pipe Elbow
Feedback Form

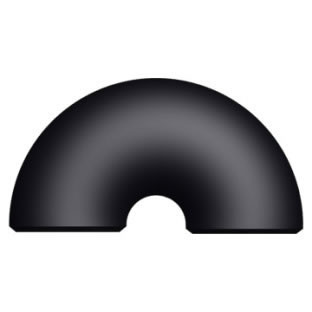

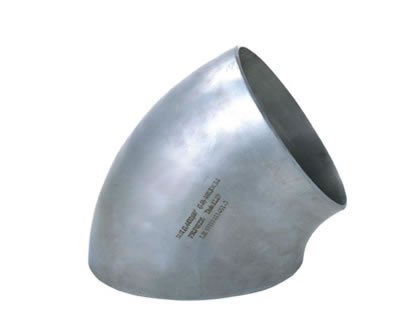

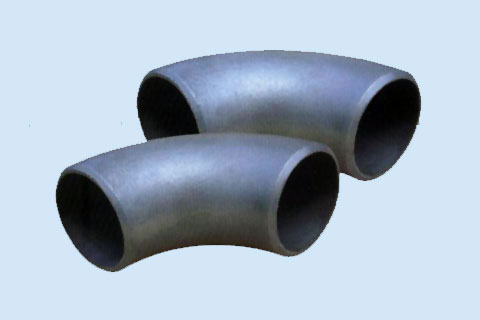

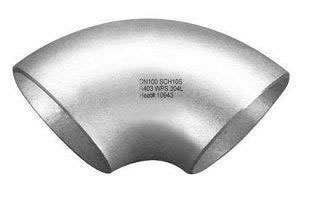

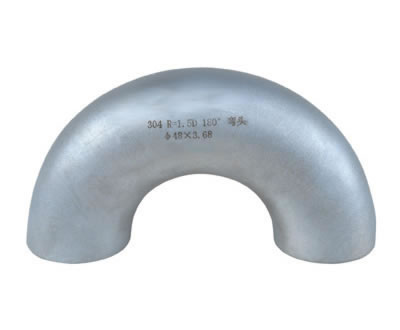

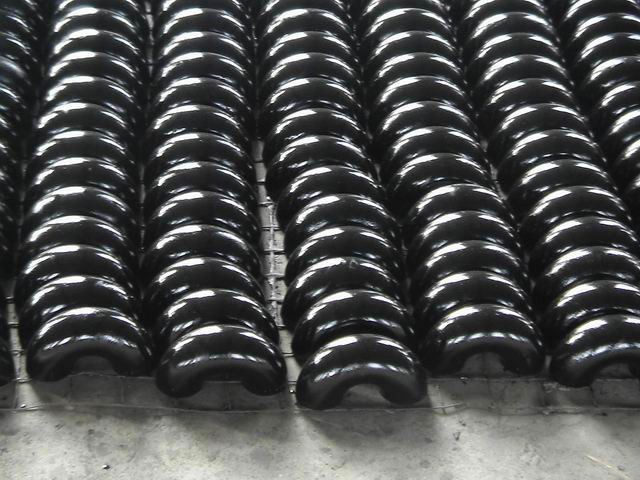

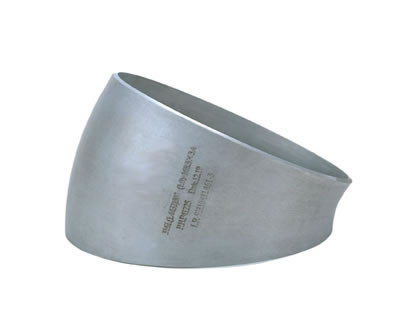

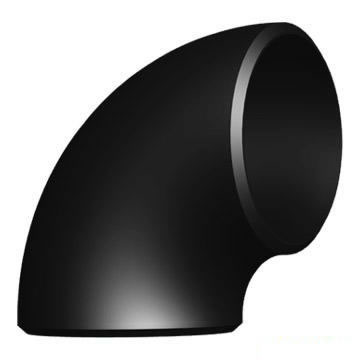

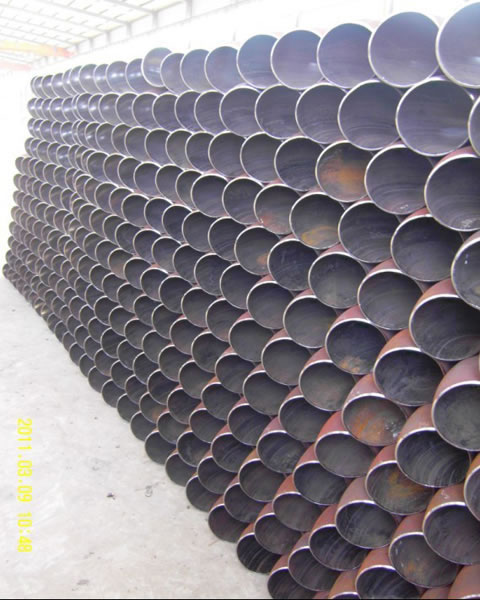

Pipe Elbow

A pipe elbow is a pipe fitting used in plumbingsystems to connect two pipes of the same or different nominal diameter. It is bent at an angle to allow straight pipes to be joined at an angle, thereby realizing a change of direction. Of all pipe fittings, pipe elbow is the most widely used one, which is used in a variety of applications in such as electrical power, marine, heating, papermaking, metallurgy, petrochemical, chemical, oil and gas, and more.
Our pipe elbow is made from a variety of materials, such as alloy steel, carbon steel, stainless steel, etc., and the materials used depend on the function of the piping unit.

The following are some specific information on our pipe elbow.

Size
Seamless elbow: 1/2"~24" DN15~DN600 Butt weld elbow: 4"~78" DN150~DN1900

Wall Thickness
sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,
sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s
Max. wall thickness: 200mm

Standard
ASTM, ASME, JIS, SGP, DIN, BS,GOST, EN

Technical Specification of Pipe Elbow

Production range
Outside diameter 1/2"~24" 4"~78"
Wall thickness 2mm~200mm
Bending radius R=1D~10D
Angle 0°~180°

Material
Carbon steel: ASTM/ASME A234 WPB, WPC
Alloy: ASTM/ASME A234, WP 11-WP 22
Stainless steel: ASTM/ASME A403 WP 304-304L
ASTM/ASME A403 WP 316-316L
ASTM/ASME A403 WP 321
Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70

Packaging

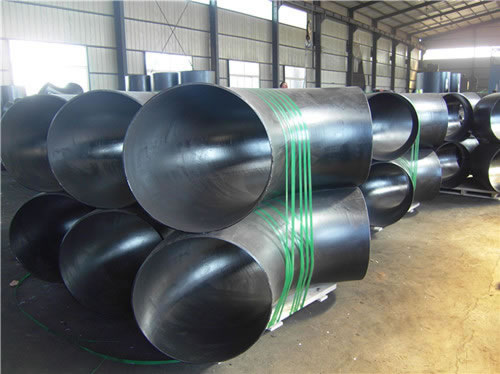

Our pipe elbow is packed in fumigation-free wooden case or on wooden pallet.
